Fuel Trailers

FuelMate® Diesel Fuel Trailers

All FuelMate® Diesel Fuel Trailers are independently mounted on the frame with spring loaded bolts. Not only does this allow for maximum vibration control, but it also provides easy access if repairs are needed. The tub baffle system allows for both front-to-back flow control and side to side flow with 30% of the fuel contained in the center tub.

FuelMate® Fuel Trailers are built using tubed framing and 2” top and bottom horizontal supports allowing for more strength than a standard “C” channel frame. Walking axles are used to allow for weight to be evenly distributed on both axles at all times. All tanks are built with corner bracing for added strength and structural stability.

Call Truck & Transportation today at (800) 299-8065 for all your fuel trailer needs.

Available in 500, 750 and 990-gallon standard capacities.

FUELMATE® MULTI-TANK FUEL TRAILER

FEATURES

  1. 54” Cabinet with two “Gull Wing” doors
  2. 5” x 2” tube frame
  3. 2 – 6,000# spring axles with electric brakes
  4. Aluminum 235-80-R16 wheels & tires
  5. DOT lighting
  6. 7 – 110 gallon diesel fuel tanks
  7. Honda electric start 50GPM fuel pump
  8. Fill-Rite 901 mechanical meter
  9. Reelcraft 1” x 50’ diesel reel with High flow auto nozzle and swivel
  10. 1 – 110 stainless steel DEF Tank
  11. 12V DEF pump with 3-way valve
  12. Reelcraft ½” x 50’ DEF reel with nozzle
  13. 4” x 6” LED work light
  14. Primer powder coat finish

BENEFITS

  • Front Cabinet – Spacious, ergonomically useful
  • Multi Tank Design – No Hazmat certification needed
  • Spring Leaf – More durable, easier to replace
  • Tube Frame – Stronger than channel iron
  • Primer Power Coat – Superior salt spray performance, durable, premium finish

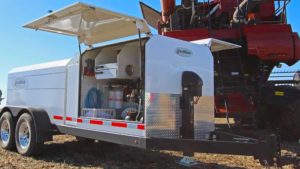

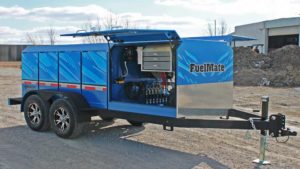

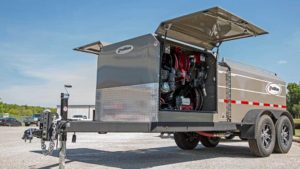

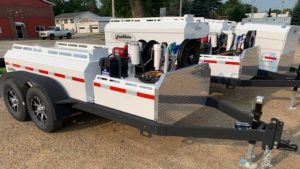

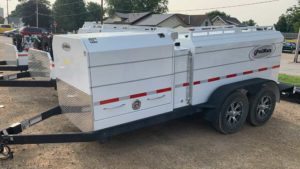

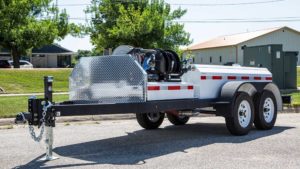

Examples of Fuel Trailers

We have 500 gallon and 990 gallon fuel tanks pictured below. Deluxe and economy types available.
